Intelligent building automation & video solutions – Made in Germany
frogblue combines patented Bluetooth Mesh, IP networking, SIP video intercoms and professional access control in one resilient platform for homes, apartments, commercial buildings, healthcare facilities and retrofit projects.
- Multi-factor
- RFID + PIN + video verification
- 20
- access zones per project
- 20+
- app languages
- No
- single point of failure
Why frogblue
What makes frogblue different
Truly decentralised
No central server. No IT cabinet. Every device is autonomous — credentials, rules and automation logic live at the door and in the installed modules, not in a rack.
No single point of failure
If the network drops, doors still open. If the internet drops, the building keeps working. If everything else drops, Bluetooth Mesh keeps communication and control alive.
No cloud lock-in
frogCloud is optional — a convenience, not a dependency. The building runs on-premise; cloud adds remote access, push calls and smartphone convenience.
Multi-factor access control, standard
RFID + PIN + video verification in one device. Almost no competitor offers all three in a single door station.
Tamper-resistant by design
Encrypted credentials, decentralised verification, no master server to compromise.
Built to be seen and touched
Machined aluminium, glass and stainless finishes, refined haptics, German engineering — hardware that belongs on a representative façade.
Architecture
Decentralised by design
Instead of routing every function through a central controller, frogblue distributes intelligence across the installed devices. Lights, doors, scenes and automation logic keep working locally — even when the network or internet does not.
- Patented Bluetooth Mesh — self-healing, multi-path communication
- IP extension via frogCast for larger and multi-site buildings
- Local-first automation logic — no server, no switch cabinet
frogTerminal
The intercom, access & automation hub — reimagined
frogTerminal unites SIP video telephony, multi-factor access control and building automation in one device, connecting door calls to SIP phones, indoor stations, smartphones, DECT handsets, KNX and video management systems.
- SIP video door communication — direct SIP and frogCloud SIP
- MOBOTIX MxMC live video, two-way audio, door release and event review
- FRITZ!Box / FRITZ!Phone DECT direct integration
- KNX event/action linking and outgoing HTTP/webhook triggers
Access control
Professional access control
DESFire EV2 RFID, PINs, schedules, zones and validity periods — managed locally and intelligently, with access rights carried on the card and optional card + PIN + video verification for higher-security requirements.
- MIFARE DESFire EV2 credentials
- Up to 20 access zones per project; up to 15 time profiles per card
- Works locally and tolerates network outages — no server lookup required
Retrofit & expansion
Made for retrofit and expansion
frogs install behind existing switches and outlets — no new communication cabling. IP extension connects larger buildings and separated areas into one system. Rooms retrofit in hours, not weeks.
- No new bus cabling — modules fit behind existing switches and outlets
- frogCast bridges separated Bluetooth zones over IP
- Scales from one room to multi-building campuses
One platform, every layer of the building
From the door to the last light switch — intercom, access, automation, software and cloud as one connected system.
Intercom & Door Communication
SIP video intercom, indoor stations and the frogTerminal hub.
- frogDisplay
- frogStation
- SIP phones
- FRITZ!Phone
- frogSIP App

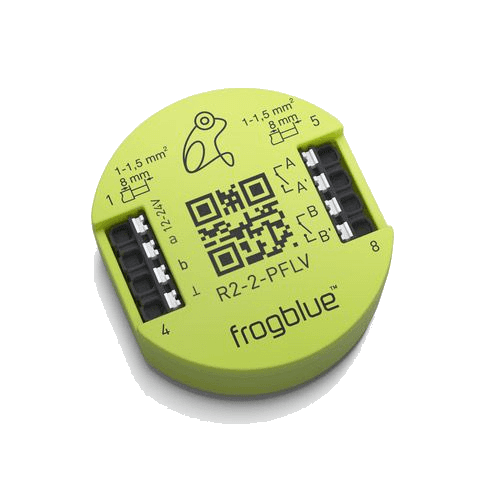

Automation Modules
Compact frog modules that install behind conventional switches and outlets.
Access Control
Decentralised RFID, PIN and video access — access rights carried on the card.
Software & Apps
Commissioning, user control and optional cloud services.
Ecosystem
Integrates with the systems you already use
- MOBOTIX MxMC
Live video, two-way intercom, door release and event review.
- KNX
Direct system events and actions linking access events with automation logic.
- SIP
Standards-based SIP with multi-server registration and third-party endpoint compatibility.
- DALI
Commercial and scene-based lighting automation via frogDALI.
- FRITZ!Box / FRITZ!Phone
Direct DECT integration for door calls on existing handsets.
- RTSP / H.264
Video stream into third-party video management systems.
- HTTP / Webhooks
Outgoing triggers drive event-driven workflows.
Who it's for
Built for the people who live in & deliver buildings
Installers & integrators
Deliver projects without centralised complexity
- frogs install behind existing switches — no switch cabinet
- Self-healing mesh; functions continue locally
- Intercom, access, lighting and automation commissioned in frogProject
Building owners & operators
Resilient local control with no lock-in
- No central controller to fail; no mandatory cloud
- Hardware refined enough for a representative entrance
- Future-ready, serviceable and scalable across buildings
Security integrators
Door events that drive real workflows
- SIP video intercom and multi-factor access in one device
- RTSP into your VMS and MOBOTIX MxMC workflows
- KNX linking and webhook triggers for alarms and events
End users & tenants
Comfort, savings and trusted security – Made in Germany
- Energy savings from automated heating, lighting and shading
- Everyday comfort from reliable, trusted automation
- Video telephony, security and access control you can rely on
Specifications
frogTerminal specifications
| Camera | 8 MP, 180° hemispheric |
|---|---|
| RFID | MIFARE DESFire EV2 |
| Authentication | RFID + PIN + video verification — supports up to 3-factor depending on configuration |
| Access zones | Up to 20 per project |
| Time profiles | Up to 15 per card |
| Recording | Event-based with pre/post snapshots |
| Network | 1 Gbit Ethernet; WLAN 2.4/5 GHz |
|---|---|
| Power | PoE 802.3af; 12–24 V DC; 24 V AC |
| Consumption | 5–8 W (approx. 5 W standby) |
| I/O | 2 inputs, 1 relay, USB-C |
| Dimensions | 186 × 103 × 35.3 mm, 360 g |
|---|---|
| Mounting | Ø 68 mm flush box, DIN 49073-1 |
| UI languages | 20+ |
Downloads & Documentation
Downloads
- frogTerminal — The Intercom, Access & Automation Hub, ReimaginedPDFThe flagship door station and access hub at a glance.Read onlineDownload (opens in a new tab)
- frogTerminal Installation ManualPDFStep-by-step installation and commissioning guide.Read onlineDownload (opens in a new tab)
- frogblue brochurePDFOverview of the decentralised platform, products and integrations.Read onlineDownload (opens in a new tab)
Plan your project with frogblue
Talk to the team about retrofit, new-build and multi-building deployments — from a single apartment to hospital-scale.
