Development Note 1/2023 — frogLink: Usage in Text Mode

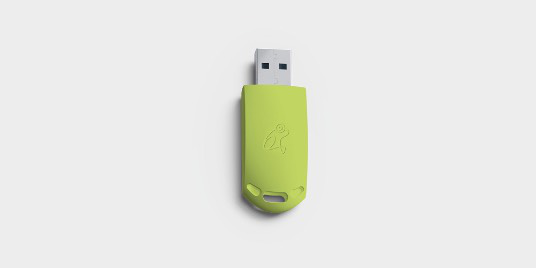

This document describes the usage of the frogLink as a serial USB-Gateway in the operation mode called “Text Mode”. In the Text Mode all commands used in the frogblue system can be received and transmitted via the frogLink as ASCII characters to be processed further on the connected device.

The following features are supported:

• Transmit and receive as plain ASCII characters (plain text)
• Transmit and receive as JSON ASCII characters (JSON format)
• Transmit and receive control messages (e.g. switch light on)
• Transmit and receive control status messages (e.g. status is night)
• Transmit status information of output channels (e.g. light is set to 69% dim value)

A second operating mode is the so called frogblue mode, where the frogLink is used as a configuration interface on a Microsoft Windows® system. This mode is described in the frogblue manual and is not part of this document.

Disclaimer ¶

This document is provided by frogblue AG; frogblue AG reserves all rights for the document. frogblue AG assumes no liability for indirect, direct or accidental damage or consequential losses occurring as a result of using this document. All information published in the document is given to the best of frogblue AG knowledge. In so far as permissible by law, however, none of this information shall establish any guarantee, commitment or liability by frogblue AG.

frogblue AG can, at their own discretion and without any assumption of liability, amend this document in full or in part at any time, without prior notice.

Author: Jens Wirok — V1.2 • May 2023

Change log (document) ¶

1. Definition of terms ¶

Communication via the serial interface is in ASCII encoded text, either in plain text or in JSON format. Both can be used simultaneously, but it is recommended to choose one of the two formats.

2. Settings of serial interface ¶

The following settings must be applied to the serial interface:

Set the baud rate ¶

The rate can be adjusted within a range of 1200 to 115200 Baud, if necessary.

Command (plain text):

$asc(xxx)

Response:

$asc:OK
$rebooted

Command (JSON format):

{"cmd":"asc","baud":xxx}

Response:

{"asc":"ok","baud":"115200"}
{"err":"rebooted"}

3. Commands in plain text ¶

3.1. General commands ¶

3.1.1. Request project information ¶

Receiving information about the project, as in name of the project, software version, date and time of configuration, etc.

Command:

$project

Response:

$
Project=frogblueHeadquater       --> Project name
frogLinkName=frogInterface       --> Configured device name of frogLink
frogLinkRoom=ServerRoom          --> Configured location (room) of frogLink
frogLinkBuilding=                --> Configured location (building) of frogLink (not used yet)
SW-Version=1.7.0.4               --> frogware currently installed on the frogLink
Config=09.07.2020 14:45:32       --> Date and time of the frogLink configuration
Address=A8:36:7A:00:1D:C2        --> Bluetooth MAC address of frogLink
NetID=190                        --> Network ID of the project
$

3.1.2. Request available messages ¶

Request the list of control messages configured in the frogLink. Only these messages can be sent and received. Sending and receiving can be enabled individually with the frogblue ProjectApp.

Command:

$message / $messages

Response:

$
CeilingLight
ShutterEast-Pos
ShutterEast
ShutterEast-Up
RingMainDoor
OpenMainDoor
$

3.1.3. Request available rooms ¶

Request the list of rooms configured in the frogLink. Only these rooms can be individually addressed with type messages.

Available rooms are configured with the frogblue ProjectApp.

Command:

$room / $rooms

Response:

$
LivingRoom
Kitchen
Children
$

3.1.4. Request available types ¶

Request the list of type messages configured in the frogLink. Only these type messages can be sent.

Available types are configured with the frogblue ProjectApp.

Command:

$type / $types

Response:

$
Light
Shutter
ShutterUp
OpenDoor
$

3.1.5. Combine requests ¶

Requests for rooms and types can be combined to receive the available types in a specific room.

Command:

$types(room=Kitchen)

Response:

$
Light
Shutter
$

3.1.6. Enable receiving messages in plain text ¶

Receiving messages in plain text is activated by default and will be restored during a factory reset / software update.

Without receiving messages enabled, it is not possible to receive any messages from the frogblue system in plain text, but it is possible to send commands to the system.

This is independent from enabling/disabling receiving in JSON format.

Command:

$msgenable

Response:

$msgenable=true

3.1.7. Disable receiving messages in plain text ¶

Command:

$msgdisable

Response:

$msgenable=false

3.1.8. Enable receiving status messages in plain text ¶

Receiving of standard and control status messages in plain text is disabled by default and will be restored during a factory reset / software update.

To receive status messages, reception of messages itself must be enabled (see Enable receiving of messages in plain text).

This is independent from enabling/disabling receiving in JSON format.

Command:

$statusenable

Response:

$statusEnabled=true

3.1.9. Disable receiving status messages in plain text ¶

Command:

$statusdisable

Response:

$statusEnabled=false

3.2. Send messages ¶

3.2.1. Send control messages ¶

Control messages are sent just by transmitting the message name (e.g. “CeilingLight”). Usually, the message will be a toggle (an output which is off will switch on and an output which is on will switch off).

The control message can be combined with other parameters (e.g. switching on or off regardless of the current output state, switching on for a specified time or the setting brightness), if supported by the receiving device.

The following parameters are available:

The order of the parameters is not relevant.

The response received is the message sent by the frogLink and does not reflect the state of the output!

Example message “CeilingLight”

Command ‘Toggle’:

CeilingLight

Response:

$CeilingLight(255,255,0)

Command ‘Switch on’:

CeilingLight(ON)

Response:

$CeilingLight-Value(255,255,0)

Command ‘Switch off’:

CeilingLight(OFF)

Response:

$CeilingLight-Value(0,255,0)

Command ‘Switch on for 5 minutes’:

CeilingLight(ON,time=5m)

Response:

$CeilingLight-Value(255,255,5m)

Command ‘Toggle and if turned on, remain on for 5 minutes’:

CeilingLight(time=5m)

Response:

$CeilingLight(255,255,5m)

Command ‘Toggle with dim value 40%’:

CeilingLight(bright=40)

Response:

$CeilingLight(40,255,0)

Command ‘Switch on with dim value 40%’:

CeilingLight(ON,bright=40)

Response:

$CeilingLight-Value(40,255,0)

Command ‘Switch on for 5 minutes with dim value 40%’:

CeilingLight(ON,time=5m,bright=40)

Response:

$CeilingLight-Value(40,255,5m)

Command ‘Toggle with dim value 40% and if turned on, remain on for 5 minutes’:

CeilingLight(time=5m,bright=40)

Response:

$CeilingLight(40,255,5m)

3.2.2. Send shutter control messages ¶

Control messages to control shutter outputs are slightly different from regular control messages, due to the possibility to set shutter and slats positions.

Shutter up and position are separate messages that must be configured on the frogLink with the frogblue ProjectApp.

The response received is the message sent by the frogLink and does not reflect the state of the output!

Example message “ShutterEast”

Command ‘Shutter down’ (when shutter is moving, the command will stop the shutter):

ShutterEast

Response:

$ShutterEast(255,255,0)

Command ‘Shutter up’ (when shutter is moving, the command will stop the shutter):

ShutterEast-Up

Response:

$ShutterEast-Up(255,255,0)

Command ‘Shutter to position 30% down’:

ShutterEast-Pos(pos=30)

Response:

$ShutterEast-Pos(30,255,0)

Command ‘Shutter to position 70% down and slats position 50%’:

ShutterEast-Pos(pos=30,slats=50)

Response:

$ShutterEast-Pos(30,50,0)

Command ‘Slats position 80%’:

ShutterEast-Pos(slats=80)

Response:

$ShutterEast-Pos(255,80,0)

3.2.3. Request output information of devices ¶

Command to request the current dim value of an output channel. Feedback can only be received if $statusenable is set.

Currently only type=bright is implemented and can also be used to receive shutter positions.

The response received is the current output state of the device:

$status(type=bright,target=XXXX,output=Y)

Where “XXXX” is the device network address as hexadecimal value and “Y” is the output channel:

$status(type=bright,target=0x0083,output=A)

Response:

$status(source=0x0083,output=A,value=70%)

3.2.4. Send control status messages ¶

Command to set a specific control status (e.g. Night) in the frogblue system. The control status is used to set logical gates to allow different behavior under different conditions. For example, the lights should switch on with different dim value at night, or the corridor light should switch on automatically if it is night and the door is open.

Control status messages need to be repeated at least every 7 minutes as the logical gate requires an update of the status after 8 minutes (recommended repeat time: 4-6 minutes).

The logical gates must be defined with the frogblue ProjectApp.

Example message ‘“Night” true’:

Night(true)

Response:

$cStatus(Night,1,x,x)

Example message ‘“Night” false’:

Night(false)

Response:

$cStatus(Night,0,x,x)

3.3. Receive messages ¶

3.3.1. Receive control messages ¶

Parameters, that are transmitted with the message, are added in brackets after the message name.

Example message ‘“CeilingLight” toggle with last dim value’:

CeilingLight(255,255,0)

Example message ‘“CeilingLight” toggle with 100% dim value’:

CeilingLight(100,0,0)

Example message ‘“CeilingLight” toggle 50% for 5 minutes’:

CeilingLight(50,255,5m)

3.3.2. Receive standard status messages ¶

Standard status messages are sent on a periodical bases by the devices and on output status change.

They can only be received if $statusenable is set.

Example messages ‘device 0x0083, output A turned on with 70% dim value’:

$status(source=0x0083,output=A,value=1)
$status(source=0x0083,output=A,value=70%)

Example message ‘device 0x0083 output A at 70% dim value’ (repeated every 8 minutes):

$status(source=0x0083,output=A,value=70%)

3.3.3. Receive standard status messages from shutters ¶

Standard status messages from shutters are sent by the devices on a periodical basis and on change.

They can only be received if $statusenable is set.

Example messages ‘device 0x0101 shutter is moving’:

$status(source=0x0101,output=A,value=1)

or

$status(source=0x0101,output=B,value=1)

Example message ‘device 0x0101 shutter at 40% closed and slats fully closed’ (repeated every 8 minutes):

$status(source=0x0101,output=A,pos=40%,slats=100%)
$status(source=0x0101,output=B,pos=40%,slats=100%)

3.3.4. Receive standard status messages from sensors ¶

Devices with environmental sensors (e.g. temperature/brightness/humidity) send standard status messages on a periodical basis.

They can only be received if $statusenable is set.

Example message frogMultiSense ‘device 0x0083’:

$status(source=0x0083,temp=21.4C,reed0=1,reed1=1,reed2=1,reed3=1,humidity=31%,bright=10lux))
$status(source=0x0083,airpressure=989mbar)

3.3.5. Receive control status messages ¶

Control status messages are sent every 1-8 minutes, depending on the configuration of the system.

Example message ‘“Night” true’:

$cstatus(Night,1,x,x)

Example message ‘“Night” false’:

$cstatus(Night,0,x,x)

3.3.6. Receive heating output status messages ¶

Heating status messages are sent every 4 minutes or upon status change of the heating device.

Example message from frogBoxHeat:

{„newMsg":null,"type":"sStatus","source":"18A2","channels":"10000100000"}

“Channels” displays the heating/cooling status of the channels as boolean (true or false) values. The values do not reflect the output status open/closed, as normally open or normally closed valves can be used.

The boolean values have no direct reference to the physical outputs, but represent the order of configuration in the frogblue ProjectApp.

The first boolean value is the first entry created in the ProjectApp, the second boolean value is the second entry, and so on.

In the example the first and the sixth channel are currently heating/cooling.

3.3.7. Receive heating status messages ¶

Heating status messages are sent every 4 minutes or upon status change from the heating devices.

Example message from frogBoxHeat:

$status(source=0x18A2,channel=8,temp=21.5C,offset=0C,day=1,cooling=0,accept=1,others=0,night=1,mode=0)

4. Commands in JSON format ¶

4.1. General commands ¶

4.1.1. Request project information ¶

Receiving information about the project, as in name of the project, software version, date and time of configuration, etc.

Command:

{"cmd":"project"}

Response:

{
    "project":"frogblueHeadquater",
    "frogLinkName":"frogInterface",
    "frogLinkRoom":"ServerRoom",
    "frogLinkBuilding":"",
    "SW-Version":"1.7.0.4",
    "Config":"09.07.2020 14:45:32",
    "Address":"A8:36:7A:00:1D:C2",
    "NetID":"190",
    "API":"2.0"
}

4.1.2. Request available messages ¶

Request the list of control messages configured in the frogLink. Only these messages can be sent and received.

Sending and receiving can be enabled individually with the frogblue ProjectApp.

Command:

{"cmd":"messages"} / {„cmd":"message"}

Response:

{
    "message":
        [”CeilingLight”,"ShutterEast-Pos","ShutterEast","ShutterEast-Up","RingMainDoor","OpenMainDoor"]
}

4.1.3. Request available rooms ¶

Request the list of rooms configured in the frogLink. Only these rooms can be individually addressed with type messages.

Available rooms are configured with the frogblue ProjectApp.

Command:

{"cmd":"rooms"} / {„cmd":"room"}

Response:

{
    "rooms":
        ["LivingRoom","Kitchen","Children"]
}

4.1.4. Request available types ¶

Request the list of type messages configured in the frogLink. Only these types can be sent.

Available types are configured with the frogblue ProjectApp.

Command:

{"cmd":"types"}

Response:

{
    "types":
        ["Light","Shutter","ShutterUp","OpenDoor"]
}

4.1.5. Combine requests ¶

Requests for rooms and types can be combined to receive the available types in a specific room.

Command:

{"cmd":„types","room":"Kitchen"}

Response:

{
    "types":
        ["Light","Shutter"]
}

4.1.6. Enable receiving messages in JSON format ¶

Receiving messages in JSON format is activated by default and will be restored during a factory reset / software update.

Without message receiving enabled it is not possible to receive any messages from the frogblue system in JSON format, but it is possible to send commands to the system.

This is independent from enabling/disabling receiving in plain text.

Command:

{"cmd":"msgenable","enabled":true}

Response:

{
    "msgEnabled":true
}

4.1.7. Disable receiving messages in JSON format ¶

Command:

{"cmd":"msgenable","enabled":false}

Response:

{
    "msgEnabled":false
}

4.1.8. Enable receiving status messages in JSON format ¶

Receiving of standard and control status messages in JSON format is disabled by default and will be restored during a factory reset / software update.

To receive status messages, receiving of messages must be enabled generally (see Enable receiving of messages in JSON format).

This is independent from enabling/disabling receiving in plain text.

Command:

{"cmd":"statusenable","enabled":true}

Response:

{
    "statusEnabled":true
}

4.1.9. Disable receiving status messages in JSON format ¶

Command:

{"cmd":"statusenable","enabled":false}

Response:

{
    "statusEnabled":false
}

4.2. Send messages ¶

4.2.1. Send control messages ¶

Control messages are sent by transmitting the message name (e.g. ”CeilingLight" [string]). Usually, the message will be a toggle (an output which is off will switch on and an output which is on will switch off).

The control message can be combined with other parameters (e.g switch on or off regardless of the current output status, switch on for a specified time or set brightness to a percentage value), if supported by the receiving device.

The following parameters are available:

The order of the parameters is not relevant.

The response received is the message sent by the frogLink and does not reflect the state of the output!

Example message “CeilingLight”

Command ‘Toggle’:

{"msg":"CeilingLight"}

Response:

{
    ”newMsg":"CeilingLight",
    ”p0":255,
    ”p1":255,
    ”p2":0
}

Command ‘Switch on’:

{"msg":"CeilingLight","on":true}

Response:

{
    ”newMsg":"CeilingLight-Value",
    ”p0":255,
    ”p1":255,
    ”p2":0
}

Command ‘Switch off’:

{"msg":"CeilingLight","on":false}

Response:

{
    ”newMsg":"CeilingLight-Value",
    ”p0":0,
    ”p1":255,
    ”p2”:0
}

Command ‘Switch on for 5 minutes’:

{"msg":"CeilingLight","on":true,"time":"5m"}

Response:

{
    ”newMsg":"CeilingLight-Value",
    ”p0":255,
    ”p1":255,
    ”p2":"5m"
}

Command ‘Toggle and if turned on, remain on for 5 minutes’:

{"msg":"CeilingLight","time":"5m"}

Response:

{
    ”newMsg":"CeilingLight",
    ”p0":255,
    ”p1":255,
    ”p2":"5m"
}

Command ‘Toggle with dim value 40%’:

{"msg":"CeilingLight","bright":40}

Response:

{
    ”newMsg":"CeilingLight",
    ”p0":40,
    ”p1":255,
    ”p2":0
}

Command ‘Switch on with dim value 40%’:

{"msg":"CeilingLight","on":true,"bright":40}

Response:

{
    ”newMsg":"CeilingLight-Value",
    ”p0":40,
    ”p1":255,
    ”p2":0
}

Command ‘Switch on for 5 minutes’ with dim value 40%:

{"msg":"CeilingLight","time":"5m","on":true,"bright":40}

Response:

{
    ”newMsg":"CeilingLight"-Value,
    ”p0”:40,
    ”p1":255,
    ”p2":"5m"
}

Command ‘Toggle with dim value 40% and if turned on, for 5 minutes’:

{"msg":"CeilingLight","bright":40,"time":"5m"}

Response:

{
    ”newMsg":"CeilingLight",
    ”p0”:40,
    ”p1":255,
    ”p2":"5m"
}

4.2.2. Send shutter control messages ¶

Control messages to control shutter outputs are slightly different from regular control messages, due to the possibility to set shutter and slats positions.

Shutter up and position are separate messages which must be configured on the frogLink with the frogblue ProjectApp.

The response received is the message sent by the frogLink and does not reflect the state of the output!

Example message “ShutterEast”

Command ‘Shutter down’ (when shutter is moving, the command will stop the shutter):

{"msg":"ShutterEast"}

Response:

{
    ”newMsg":"ShutterEast",
    ”p0":255,
    ”p1":255,
    ”p2":0
}

Command ‘Shutter up’ (when shutter is moving, the command will stop the shutter):

{"msg":"ShutterEast-Up"}

Response:

{
    ”newMsg":"ShutterEast-Up",
    ”p0":255,
    ”p1":255,
    ”p2":0
}

Command ‘Shutter to position 30% down’:

{"msg":"ShutterEast-Pos","pos":30}

Response:

{
    ”newMsg”:"ShutterEast-Pos",
    "p0":30,
    ”p1":255,
    ”p2":0
}

Command ‘Shutter to position 70% down and slats position 50%’:

{"msg":"ShutterEast-Pos","pos":70,"slats":50}

Response:

{
    ”newMsg":"ShutterEast-Pos",
    ”p0":70,
    ”p1":50,
    ”p2":0
}

Command ‘Slats position 80%’:

{"msg":"ShutterEast-Pos","slats":80}

Response:

{
    ”newMsg":"ShutterEast-Pos",
    ”p0":255,
    ”p1":80,
    ”p2":0
}

4.2.3. Request output information of devices ¶

Command to request the current dim value of an output channel. Can only be received if statusenable is enabled.

Currently only type=bright is implemented and can also be used to receive shutter positions.

The response received is the current output status of the device:

{"cmd":"status","type":"bright","target":"XXXX","output":"Y"}

Whereby “XXXX” is the device network address as a hexadecimal value and “Y” is the output channel:

{"cmd":"status","type":"bright","target":"0083","output":"A"}

Response:

{
    "newMsg":null,
    "type":”sStatus”,
    "source":"0083",
    "output":"A",
    "values":{
        "on":{
            "value":true,
            "unit":null
        }
    }
}
{
    "newMsg":null,
    "type":"sStatus",
    "source":"0083",
    "output":"A",
    "values":{
        "bright":{
            "value":52,
            "unit":"%"
        }
    }
}
{
    "newMsg":null,
    "type":"sStatus",
    "source":"0083",
    "output":"A",
    "values":{
        "power":{
            "value":23,
            "unit":"W"
        }
    }
}

4.2.4. Send control status messages ¶

Command to set a specific control status (e.g. Night) in the frogblue system. The control status is used to set logical gates to allow different behavior at different conditions.

For example, the lights should switch on with different dim value at night, or the corridor light should switch on automatically if it is night and the door is open.

Control status messages need to be repeated at least every 7 minutes as the logical gate requires an update of the status after 8 minutes (recommended repeat time: 4-6 minutes).

The logical gates must be defined with the frogblue ProjectApp.

Example message ‘“Night” true’:

{”msg”:”Night”,"status":true,"changed":true}

Response ("p1" & "p2" can have values from 0 to 255 and are not specified in this version):

{
    ”newMsg":"Night",
    ”type":"cStatus",
    ”p0":1,
    ”p1":255,
    ”p2":0
}

Example message ‘“Night” false’:

{”msg”:”Night”,”status":false,"changed":true"}

Response:

{
    ”newMsg":"Night",
    ”type":"cStatus",
    ”p0":0,
    ”p1":255,
    ”p2":0
}

4.2.5. Send standard status messages as sensor ¶

The frogLink can act as a MultiSense/RoomRoomSense and send different sensor information to the frogblue network.

Example message ‘“Temperature” 20.5°C, „Humidity" 31%, „Brightness" 50 lux’:

{"newMsg":null,"type":"sStatus","temp":20.5,"humidity":31,"bright":50}

4.2.6. Send heating control messages ¶

The following parameter must be transmitted:

Example message „Set desired day temperature to 22.5°C, night temperature to 19.0°C, currently day mode, no special mode, cooling is off, accept values from other devices and do ignore open window":

{„cmd":"heat","room":"Office","dT":22.5,"nT":19.0,"day":true,"mode":0,"cool":false,"accept":true,"allow":false}

4.3. Receive messages ¶

4.3.1. Receive control messages ¶

Example message ‘“CeilingLight” toggle with last dim value’:

{
    ”newMsg":"CeilingLight",
    ”p0":255,
    ”p1":255,
    ”p2":0
}

Example message ‘“CeilingLight” toggle with 100% dim value’:

{
    ”newMsg":"CeilingLight",
    ”p0":100,
    ”p1":255,
    ”p2":0
}

Example message ‘“CeilingLight” Toggle with 50% dim value for 5 minutes’:

{
    ”newMsg”:"CeilingLight",
    ”p0":50,
    ”p1":255,
    ”p2":"5m"
}

4.3.2. Receive standard status messages ¶

Standard status messages are sent on a periodical base by the devices and on output status change.

They can only be received if statusenable is set.

Example messages ‘device 0x0083 output A turned on with 70% dim value’:

{
    "newMsg":null,
    "type":"sStatus",
    "source":"0083",
    "output":"A",
    "values":{
        "on":{
            "value":true,
            "unit":null
        }
    }
}
{
    "newMsg":null,
    "type":"sStatus",
    "source":"0083",
    "output":"A",
    "values":{
        "bright":{
            "value":70,
            "unit":"%"
        }
    }
}

Example message ‘device 0x0083 output A at 70% dim value’ (repeated every 8 minutes):

{
    "newMsg":null,
    "type":"sStatus",
    "source":"0083",
    "output":"A",
    "values":{
        "bright":{
            "value":70,
            "unit":"%"
        }
    }
}

4.3.3. Receive standard status messages from shutters ¶

Standard status messages from shutters are sent by the devices on a periodical basis and on change.

Can only be received if statusenable is set.

Example messages ‘device 0x0101 shutter is moving’:

{
    "newMsg":null,
    "type":"sStatus",
    "source":"0101",
    "output":"A",
    "values":{
        "on":{
            "value":true,
            "unit":null
        }
    }
}

or

{
    "newMsg":null,
    "type":"sStatus",
    "source":"0101",
    "output":"B",
    "values":{
        "on":{
            "value":true,
            "unit":null
        }
    }
}

Example message ‘device 0x0101 shutter at 40% closed and slats fully closed’ (repeated every 8 minutes):

{
    "newMsg":null,
    "type":”sStatus”,
    "source":”0101”,
    "output":”A”,
    "values":{
        "pos":{
            "value":40,
            "unit":"%"
        },
        "slats":{
            "value":100,
            "unit":"%"
        }
    }
}

4.3.4. Receive standard status messages from sensors ¶

Devices with environmental sensors (e.g. temperature/brightness/humidity) send standard status messages on a periodical basis.

They can only be received if $statusenable is set.

Example message frogMultiSense ‘device 0x0083’:

{
    "newMsg":null,
    "type":"sStatus",
    "source":"0083",
    "values":{
        "temp":{
            "value":21.4,
            "unit":"°C"
        },
        "reed0":{
            "value":1,
            "unit":null
        },
        "reed1":{
            "value":1,
            "unit":null
        },
        "reed2":{
            "value":1,
            "unit":null
        },
        "reed3":{
            "value":1,
            "unit":null
        },
        "humidity":{
            "value":31.
            "unit":"%",
        },
        "bright":{
            "value":10,
            "unit":"lux"
        }
    }
}
{
    "newMsg":null,
    "type":"sStatus",
    "source":"0083",
    "values":{
        "airpressure":{
            "value":989,
            "unit":"mBar"
        }
    }
}

4.3.5. Receive control status messages ¶

Control status messages are sent every 1-8 minutes, depending on the configuration of the system.

Example message ‘“Night” true’:

{
    "newMsg":"Night",
    "type":"cStatus",
    "p0":1,
    "p1":255,
    "p2":0,
    "changed":true
}

Example message ‘“Night” false’:

{
    "newMsg":"Night",
    "type":"cStatus",
    "p0":0,
    "p1":255,
    "p2":0,
    "changed":true
}

4.3.6. Receive heating output status messages ¶

Heating status messages are sent every 4 minutes or upon status change of the heating device.

Example message from frogBoxHeat:

{
    "newMsg":null,
    "type":"sStatus",
    "source":"18A2",
    "values":{
        "channels":{
            "value":"10000100000"
            "unit":null
        }
    }
}

“channels” displays the heating/cooling status of the channels, whereby 0 is off and 1 is on. The values do not reflect the output status open/closed, as normally open or normally closed valves can be used.

The values have no direct reference to the physical outputs, but represent the order of configuration in the frogblue ProjectApp.

The first value is the first entry created in the ProjectApp, the second value is the second entry, and so on.

In the example the first and the sixth channel are currently heating/cooling.

4.3.7. Receive heating status messages ¶

Heating status messages are sent every 4 minutes or upon status change from the heating devices.

Example message from frogBoxHeat:

{
    "newMsg":null,
    "type":"sStatus",
    "source":"18A2",
    "channel":8,
    "values":
    {
        "temp":
        {
            "value":22.5,
            "unit":"C"
        },
        "offset":
        {
            "value":0
            "unit":null
        },
        "day":
        {
            "value":true,
            "unit":null
        },
        "cooling":
        {
            "value":0
            "unit":null
        },
        "accept":
        {
            "value":true,
            "unit":null
        },
        "others":
        {
            "value":true,
            "unit":null
        },
        "night":
        {
            "value":true,
            "unit":null
        },
        "mode":
        {
            "value":false
            "unit":null
        }
    }
}

4.3.8. Receive water meter counter (pulse counter) messages ¶

Water meter counter messages are sent every 4 minutes or upon pulse.

Example message from water meter counter:

{
    "newMsg":null,
    "type":"sStatus",
    "values":
    {
        "channel":
        {
            "value":0,
            "unit":"channel"
        },
        "count":
        {
            "value":4544,
            "unit":"count"
        }
    },
    "source":"0421",
    "dest":"FFFF"
}

5. Command reference ¶

5.1. Plain text ¶

5.2. JSON format ¶

6. Change log ¶

6.1. Document Version 1.1 (API Version: 2.0) ¶

• 3.3.7 & 4.3.7: Temperature values from frogBoxHeat/frogHeatBar contain since 1.8.x decimal values
• 4.2.4: Additional response message added
• 4.2.5: Chapter added
• 4.2.6: Chapter added
• 4.3.2 & 4.3.3: Unit (e.g. „%“) separated from value. New key „Unit”
